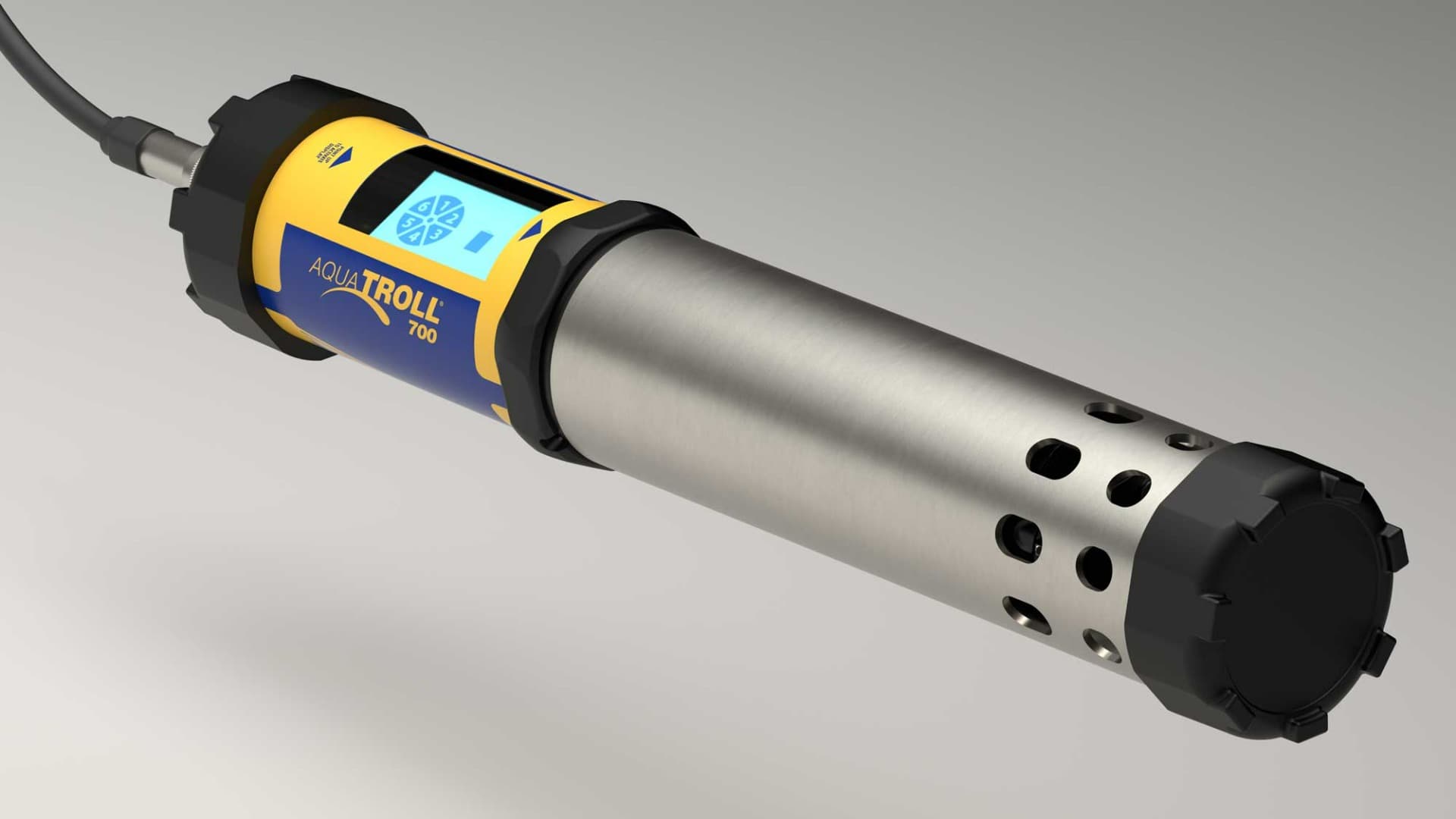

AquaTroll 700

Description

These flexible instruments are ideal for spot checking and profiling when paired with a Wireless TROLL Com and the VuSitu app, and for continuous, remote monitoring when used with VuLink telemetry and HydroVu data services.

The Aqua TROLL 500 and 600 are five-port multiparameter sondes, including four sensor ports and a wiper port. The Aqua TROLL 700 and 800 are seven-port multiparameter sondes, including six sensor ports and a wiper port. There is an option to have an automatic antifouling wiper to ensure data accuracy.

All four sondes are available in vented and non-vented options and are compatible with the complete range of Aqua TROLL sensors.

Product Detail

  • Reduce complexity and cost with equipment that works together. All Aqua TROLL products use the same ecosystem—from handheld to cable to communication
  • In-Situ performs a multi-point factory calibration on every sensor, to ensure that the sensor is linear across its full range and simplify calibration for the user
  • Keep labor and equipment costs down with advanced passive and active antifouling on all sensors and 6+ month battery life.
  • In-Situ equipment is designed to withstand use in the harshest environments. Features designed to prevent breakage or failure include:
    • Interlocking sensors for greater stability
    • Titanium restrictor
    • Fully potted sensors
    • Redundant SD card storage
    • Multi-chamber design
  • Prevent the most common damage or loss with:
    • Spring-loaded screws that keep screws in place
    • Slip-clutch wiper to prevent motor damage
    • Smart sensors that fit in any port
    • Wet-mate connectors that prevent water damage
    • Anti-roll bumpers to keep equipment stationary
  • These sondes use only 50 ml (Aqua TROLL 500/600) and 100 ml (Aqua TROLL 700/800) of solution for calibration, reducing calibration cost by 5x over traditional methods and saving thousands of dollars in calibration solution per year.
  • Aqua TROLL sensors were designed to support spot-checking and profiling applications where sensor response time is critical. The temperature sensor uses an extended thermistor and insulated barriers; RDO® has optional fast-response formulation; and a round bulb increases surface area and improves response time on the pH sensor.
